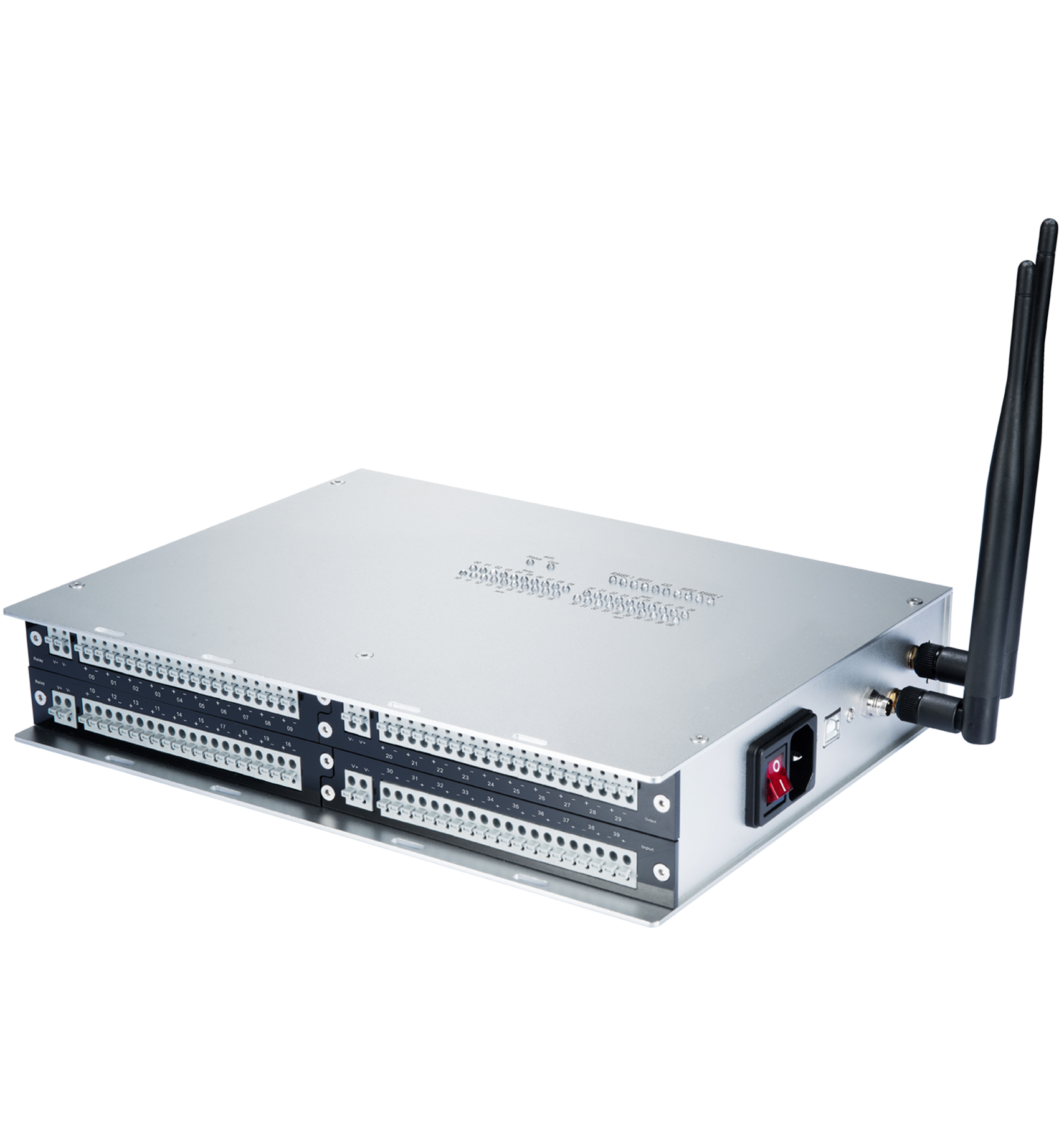

JS5200A Intelligent Controller
When building a large-scale laboratory test network, the JS5200A Intelligent Controller has the function of single test equipment group management, which can support 64 channels of collection equipment at most, and can provide simple operation control application with Portable Sysviewer monitoring software.
-

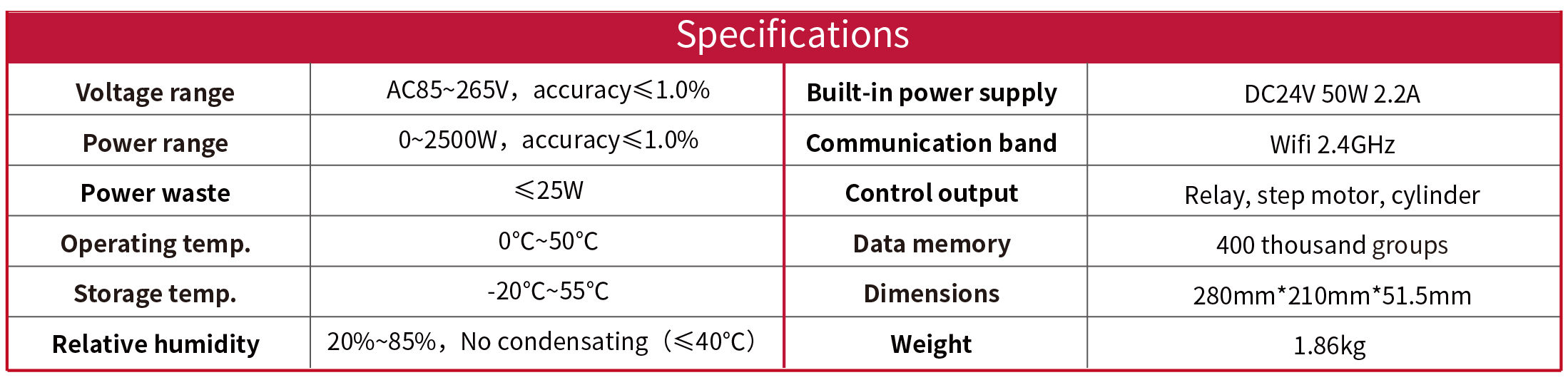

Power
0W~2500W
≤0.5% -
Voltage
85~ 265VAC
≤0.5% -
Output
Relay, step motor, cylinder
-
Data memory
400 thousand groups
| Function | Characteristic |
|---|---|
| 2 * 10 way relay module | Minimalist action control software |
| 3-way stepping motor drive control | PC end real-time data curve (matching with JS5500 series equipment) |
| Communication and setting of RS-485 / wireless 433MHz test equipment | Wireless connection, flexible networking |
| 10 signal inputs | Quickly build test platform |
